LOW VOLTAGE STANDOFF INSULATORS

AU6 – 2-3/8″ A/F

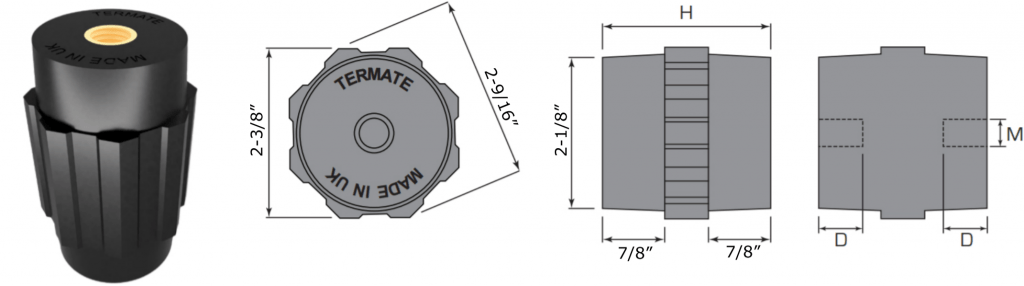

Plan and side view diagrams of the Termate standoff insulators in the AU6 footprint. Labels show width across flats is 2 and 3/8 inches, width across corners is 2 and 9/16 inches, base diameter is 2 and 1/8 inches, and shoulder height is 7/8 inches. Other dimensions are labelled with a letter, indicating a specific measurement in the table below.

TECHNICAL DATA:

Part number Height [H] Thread Size [M]* Thread Depth [D] Box Qty.
AU6-060-516 2-3/8″ 5/16″ UNC 3/8″ 20
AU6-060-038 2-3/8″ 3/8″ UNC 5/8″ 20
AU6-060-012 2-3/8″ 1/2″ UNC 5/8″ 20
AU6-060-058 2-3/8″ 5/8″ UNC 7/8″ 20
AU6-070-516 2-3/4″ 5/16″ UNC 3/8″ 20
AU6-070-038 2-3/4″ 3/8″ UNC 5/8″ 20
AU6-070-012 2-3/4″ 1/2″ UNC 5/8″ 20
AU6-070-058 2-3/4″ 5/8″ UNC 7/8″ 20
AU6-100-516 4″ 5/16″ UNC 3/8″ 10
AU6-100-038 4″ 3/8″ UNC 5/8″ 10
AU6-100-012 4″ 1/2″ UNC 5/8″ 10
AU6-100-058 4″ 5/8″ UNC 7/8″ 10



*Fixing details: Hole diameter = Standoff thread size [M]+1/16″

UL LISTING:
UL Recognised Component UL recognised logo File Number E505645



PROPERTIES:
Material Glass Reinforced Polyamide 6.6
Insert Material Brass
Operating Temperature -4°F to +266°F
Flammability UL94-V0
Oxygen Index 32%
Glow Wire 960°C



CHARACTERISTICS:
Equipment Voltage, Ue  1000 V AC/1500 V DC
Insulation Voltage, Ui  1000 V AC/1500 V DC
Impulse Voltage, Uimp 12kV



AVAILABLE FOR DOWNLOAD: Data Sheet
