LOW VOLTAGE STANDOFF INSULATORS

AU4 – 1-3/8″ A/F

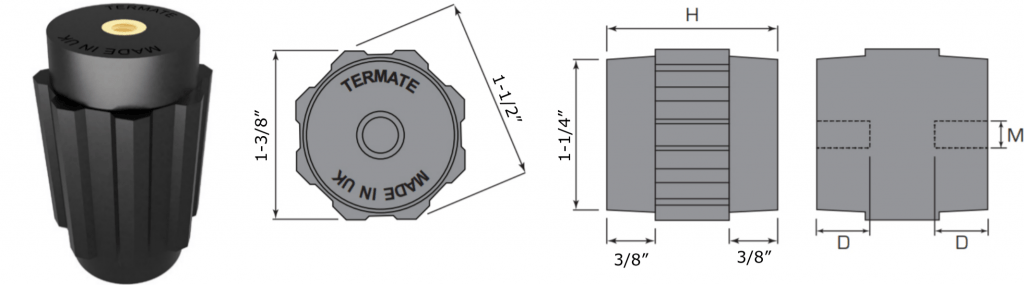

Plan and side view diagrams of the Termate standoff insulators in the AU4 footprint. Labels show width across flats is 1 and 3/8 inches, width across corners is 1 and 1/2 inches, base diameter is 1 and 1/4 inches, and shoulder height is 3/8 inches. Other dimensions are labelled with a letter, indicating a specific measurement in the table below.

TECHNICAL DATA:

Part number Height [H] Thread Size [M]* Thread Depth [D] Box Qty.
AU4-030-014 1-3/16″ 1/4″ UNC 5/16″ 60
AU4-030-516 1-3/16″ 5/16″ UNC 3/8″ 60
AU4-035-014 1-3/8″ 1/4″ UNC 5/16″ 60
AU4-035-516 1-3/8″ 5/16″ UNC 3/8″ 60
AU4-035-038 1-3/8″ 3/8″ UNC 3/8″ 60
AU4-040-014 1-9/16″ 1/4″ UNC 5/16″ 50
AU4-040-516 1-9/16″ 5/16″ UNC 3/8″ 50
AU4-040-038 1-9/16″ 3/8″ UNC 3/8″ 50
AU4-045-014 1-3/4″ 1/4″ UNC 5/16″ 50
AU4-045-516 1-3/4″ 5/16″ UNC 3/8″ 50
AU4-045-038 1-3/4″ 3/8″ UNC 5/8″ 50
AU4-050-014 2″ 1/4″ UNC 5/16″ 25
AU4-050-516 2″ 5/16″ UNC 3/8″ 25
AU4-050-038 2″ 3/8″ UNC 5/8″ 25
AU4-050-012 2″ 1/2″ UNC 5/8″ 25
AU4-060-014 2-3/8″ 1/4″ UNC 5/16″ 25
AU4-060-516 2-3/8″ 5/16″ UNC 3/8″ 25
AU4-060-038 2-3/8″ 3/8″ UNC 5/8″ 25
AU4-060-012 2-3/8″ 1/2″ UNC 5/8″ 25



*Fixing details: Hole diameter = Standoff thread size [M]+1/16″

UL LISTING:
UL Recognised Component UL recognised logo File Number E505645



PROPERTIES:
Material Glass Reinforced Polyamide 6.6
Insert Material Brass
Operating Temperature -4°F to +266°F
Flammability UL94-V0
Oxygen Index 32%
Glow Wire 960°C



CHARACTERISTICS:
Equipment Voltage, Ue 1000 V AC/1500 V DC
Insulation Voltage, Ui 1000 V AC/1500 V DC
Impulse Voltage, Uimp 12 kV



AVAILABLE FOR DOWNLOAD: Data Sheet
