LOW VOLTAGE STANDOFF INSULATORS

AU2 – 1″ A/F

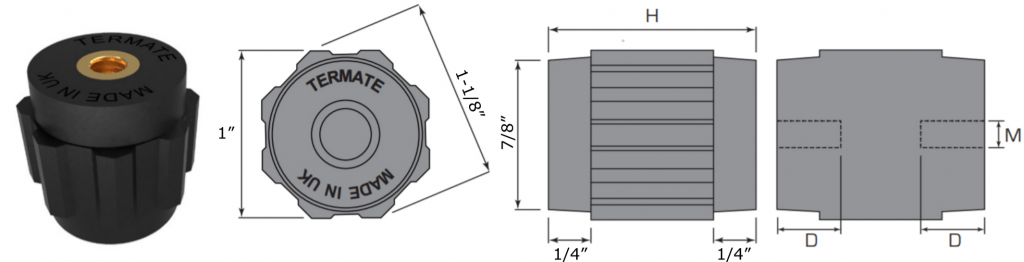

Plan and side view diagrams of the Termate standoff insulators in the AU2 footprint. Labels show width across flats is 1 inch, width across corners is 1 and 1/8 inches, base diameter is 7/8 inches, and shoulder height is 1/4 inches. Other dimensions are labelled with a letter, indicating a specific measurement in the table below.

TECHNICAL DATA:

Part number Height [H] Thread Size [M]* Thread Depth [D] Box Qty.
AU2-025-014 1″ 1/4″ UNC 5/16″ 120
AU2-030-014 1-3/16″ 1/4″ UNC 5/16″ 120
AU2-030-516 1-3/16″ 5/16″ UNC 3/8″ 120
AU2-035-014 1-3/8″ 1/4″ UNC 5/16″ 120
AU2-035-516 1-3/8″ 5/16″ UNC 3/8″ 120
AU2-040-014 1-9/16″ 1/4″ UNC 5/16″ 60
AU2-040-516 1-9/16″ 5/16″ UNC 3/8″ 60
AU2-050-014 2″ 1/4″ UNC 5/16″ 60
AU2-050-516 2″ 5/16″ UNC 3/8″ 60
AU2-060-014 2-3/8″ 1/4″ UNC 5/16″ 50
AU2-060-516 2-3/8″ 5/16″ UNC 3/8″ 50
AU2-080-014 3-1/8″ 1/4″ UNC 5/16″ 40
AU2-080-516 3-1/8″ 5/16″ UNC 3/8″ 40
AU2-100-014 4″ 1/4″ UNC 5/16″ 30
AU2-100-516 4″ 5/16″ UNC 3/8″ 30



*Fixing details: Hole diameter = Standoff thread size [M]+1/16″

UL LISTING:
UL Recognised Component UL recognised logo File Number E505645



PROPERTIES:
Material Glass Reinforced Polyamide 6.6
Insert Material Brass
Operating Temperature -4°F to +266°F
Flammability UL94-V0
Oxygen Index 32%
Glow Wire 960°C



CHARACTERISTICS:
Equipment Voltage, Ue 1000 V AC/1500 V DC
Insulation Voltage, Ui 1000 V AC/1500 V DC
Impulse Voltage, Uimp 12 kV



AVAILABLE FOR DOWNLOAD: Data Sheet
